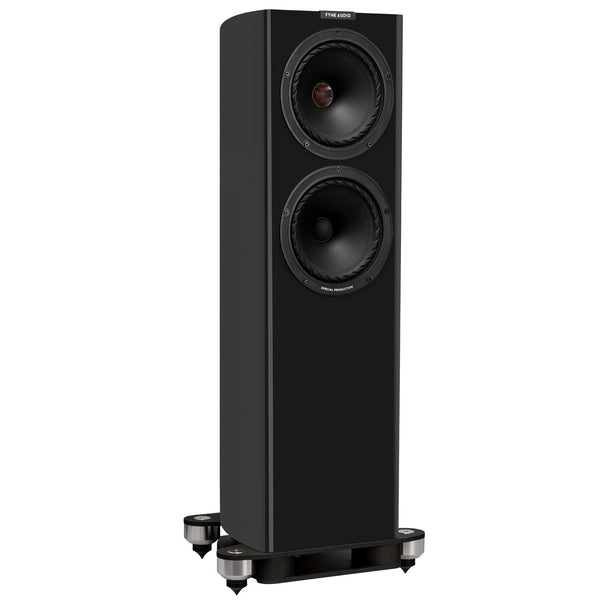

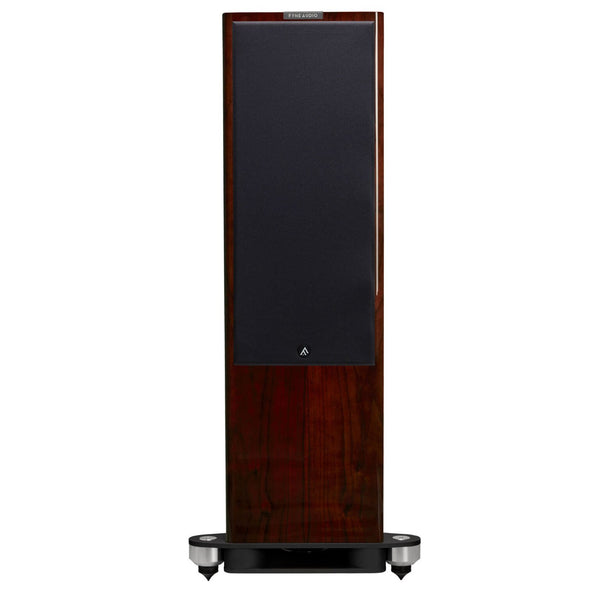

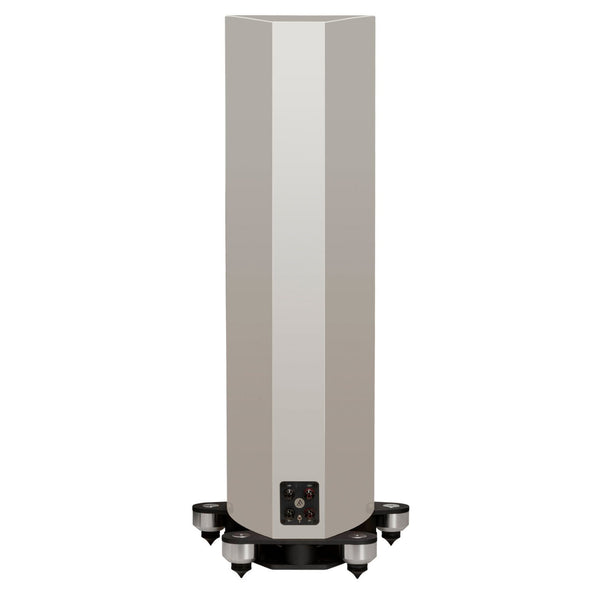

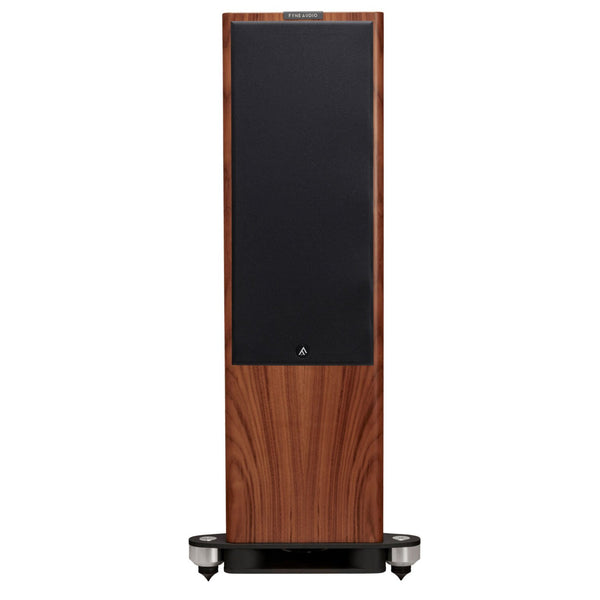

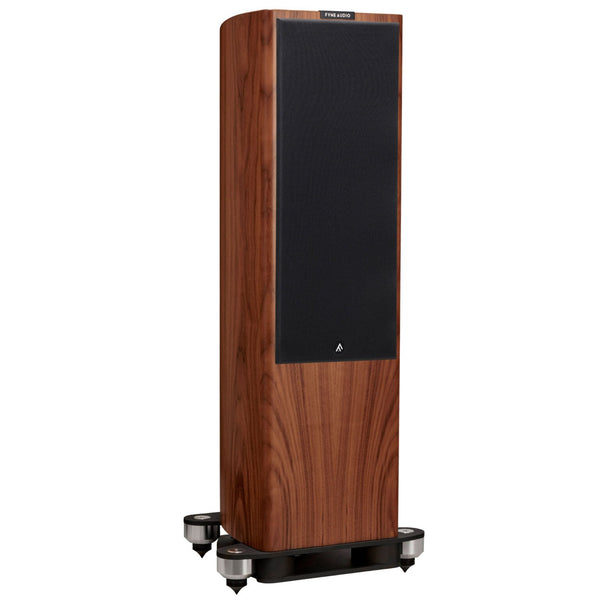

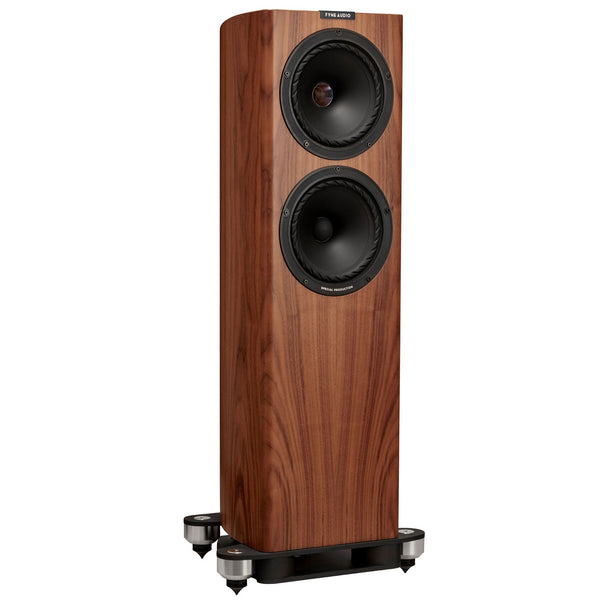

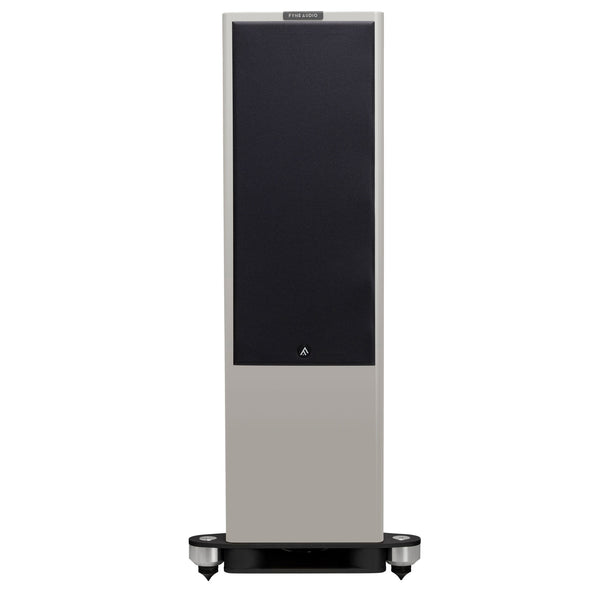

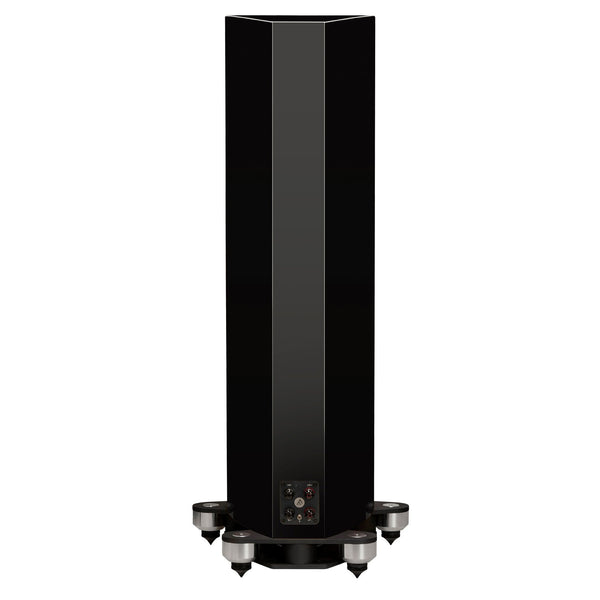

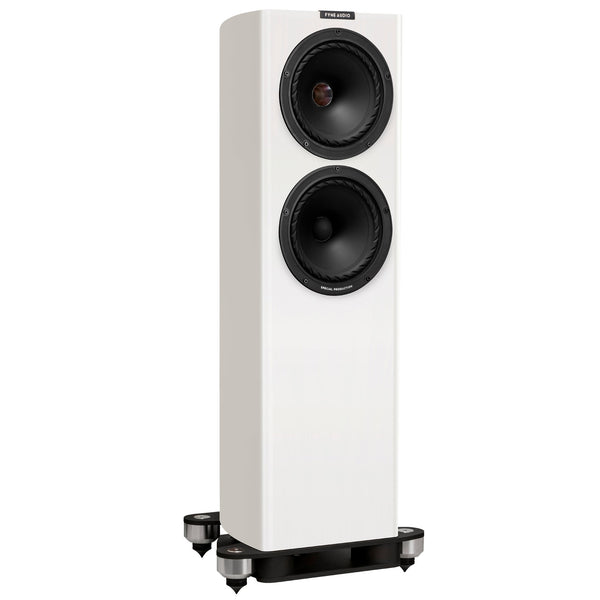

F703SP

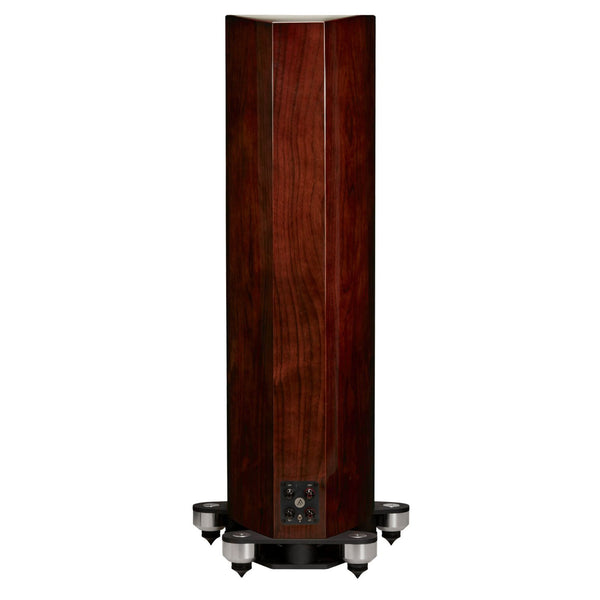

The F703SP, an evolution of Fyne Audio’s F703, encapsulates cutting-edge F1 Series technology in a floorstanding speaker designed for audiophiles. Built in Scotland, it incorporates a 250mm IsoFlare point source driver akin to the F1-10, with a vast Neodymium HF magnet system and a 3” titanium dome, delivering an audio experience with significantly reduced distortion and a more consistent frequency response. The crossover has been meticulously redesigned, optimised through both computer modelling and listening sessions, and is equipped with high-grade Claritycap capacitors and Neotech PC-OCC wiring for unparalleled transparency. The speaker’s terminals now feature high-quality gold-plated WBT Nextgen 0703 connectors, and a cryogenic treatment of the crossover in Fyne Audio’s own facilities further enhances signal clarity. Additionally, the F703SP is mounted on a heavy F1 grade machined aluminium platform with M12 threaded support cones for superior stability and precise low-frequency detail, ensuring the speaker stands firm and delivers sound that captivates with its power and dynamic range.
Specifications
System Type
2 ½ way, downwards firing port with BassTrax Tractrix diffuser, twin cavity loading system
Recommended amplifier power (Watt RMS)
30 - 250
Peak power handling (Watt)
500
Continuous power handling (Watt RMS)
125
Sensitivity (2.83 Volt @ 1m)
94dB
Nominal impedance
8 Ohm
Frequency response (-6dB typical in room)
24Hz - 26kHz
Drive unit complement
1 x 250mm IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 75mm titanium dome compression tweeter, neodymium magnet system. 1x 250mm multi-fibre bass / midrange cone, FyneFlute surround
Crossover frequency
250Hz & 850Hz
Crossover type
Bi-wired passive low loss, 2nd order low pass, 1st order high pass. Cryogenically treated
Dimensions - HxWxD
1195 x 505 x 468mm (47.0 x 19.9 x 18.4")
Net Weight - Each
56.0kg (123.5lbs)
Finishes

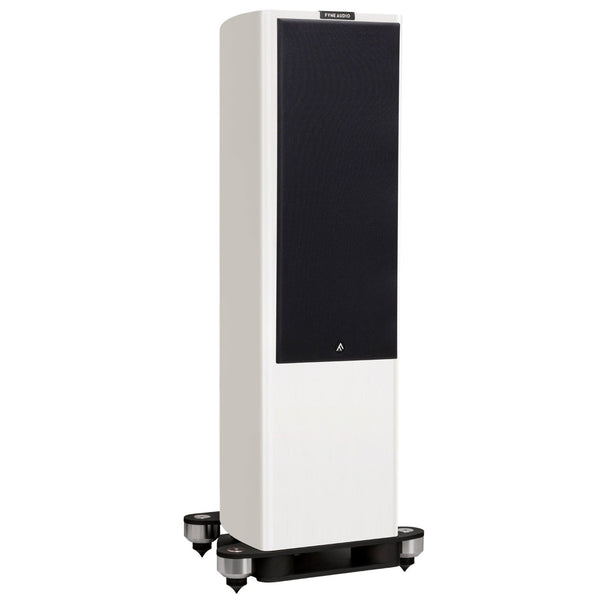

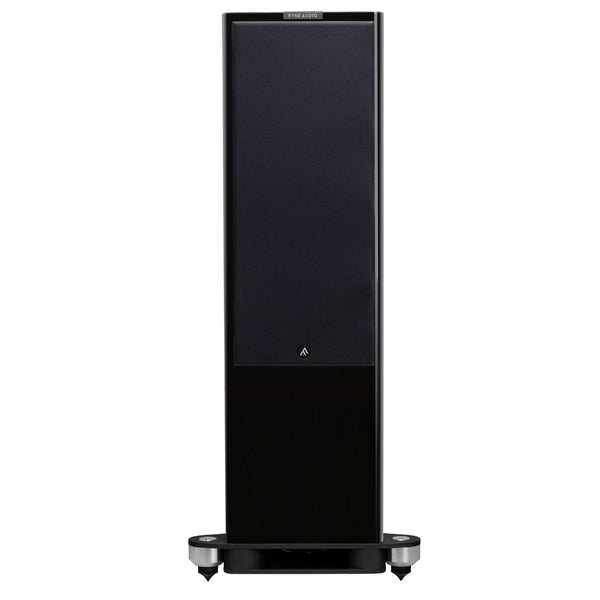

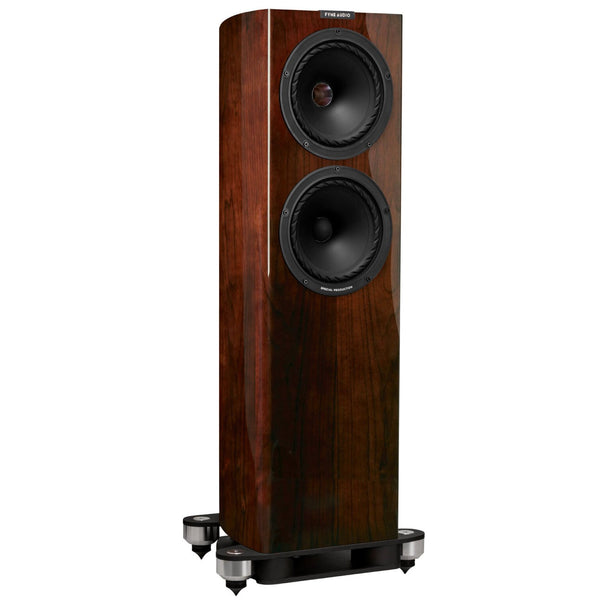

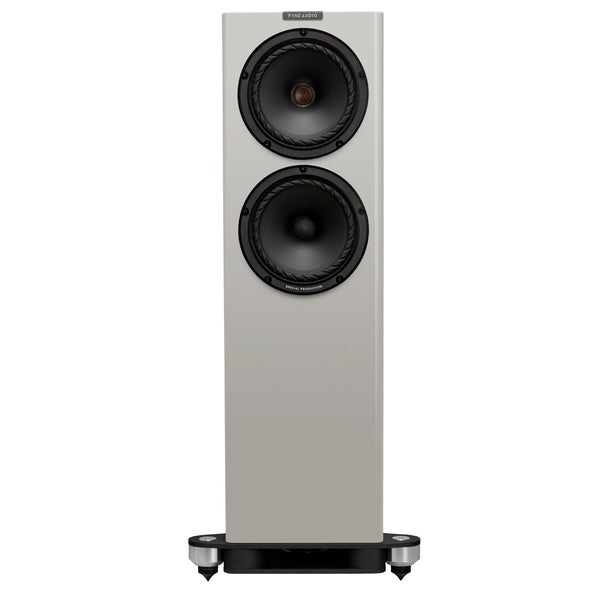

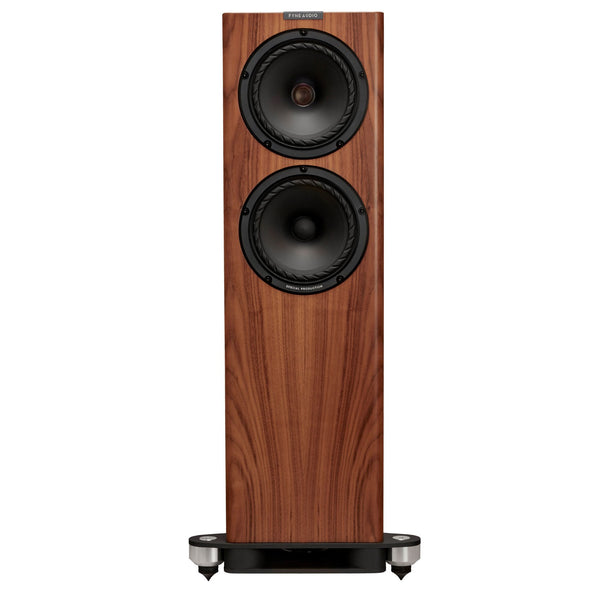

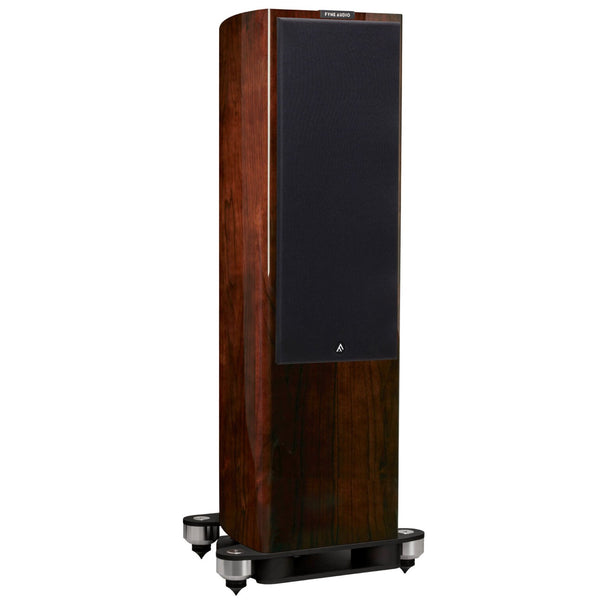

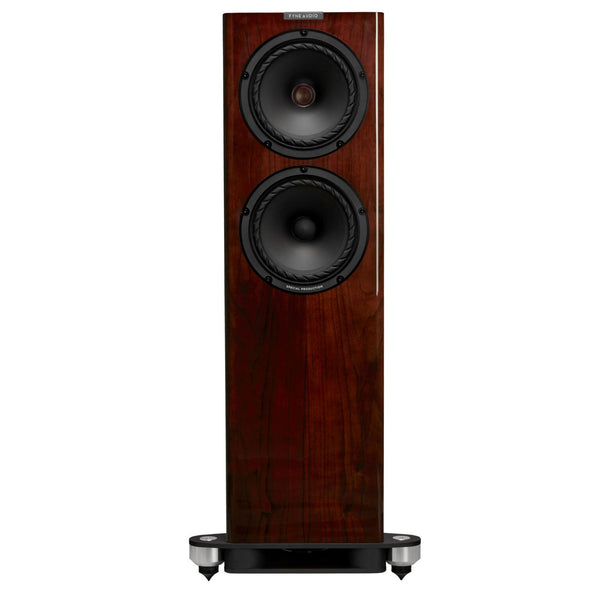

Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White / Natural Walnut
Cabinet Construction
Pressed high-density birch ply with extensive internal bracing
