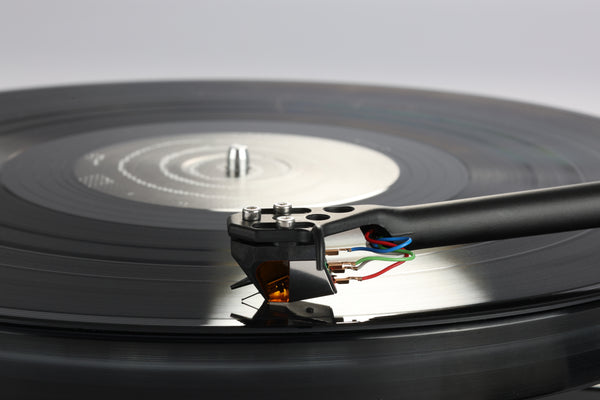

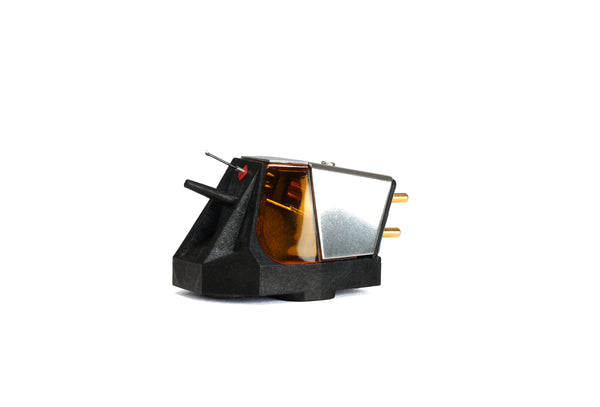

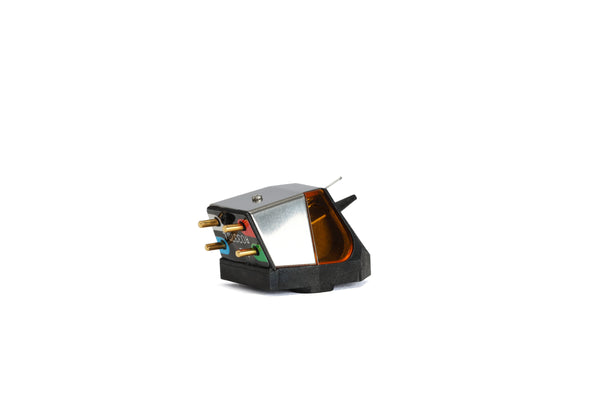

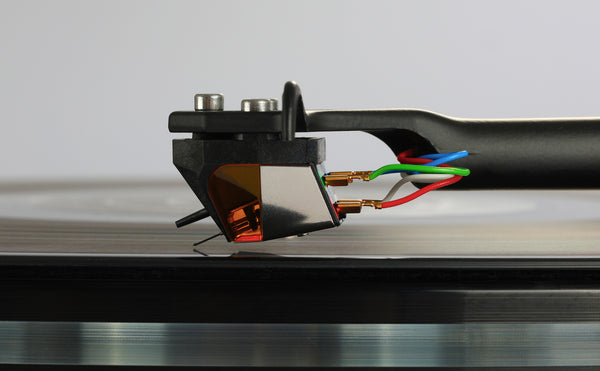

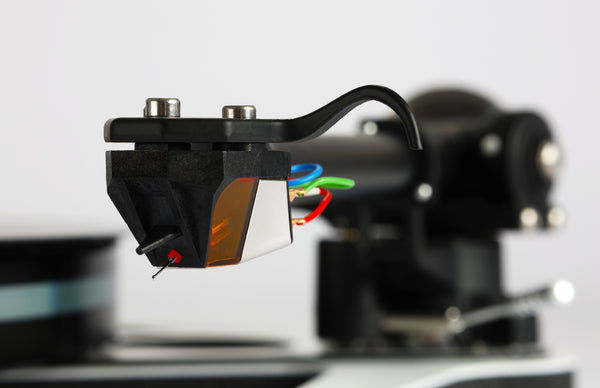

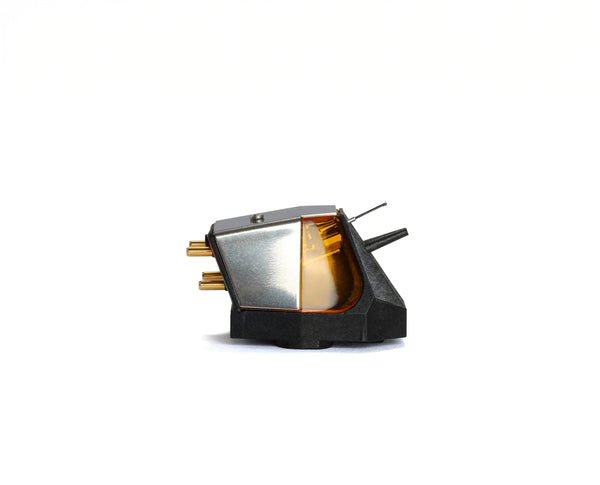

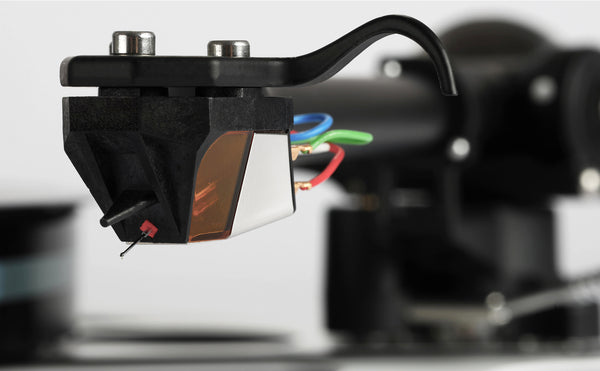

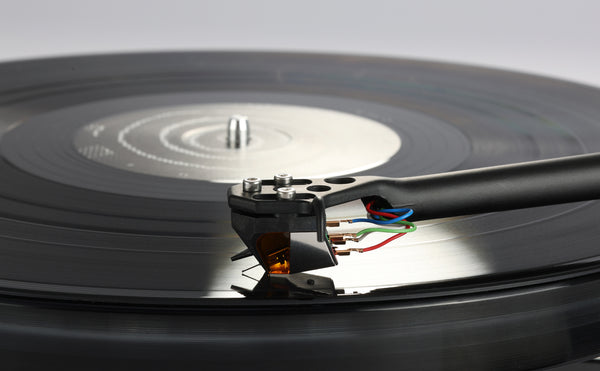

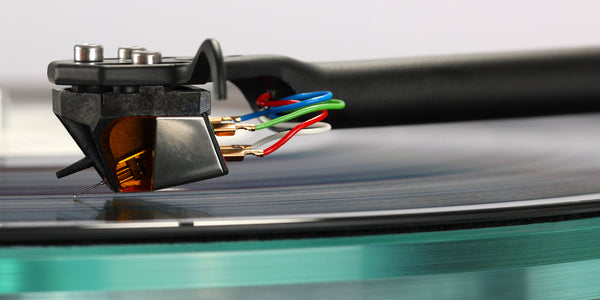

Nd9 Reference Moving Magnet Phono Cartridge
The Nd9 cartridge draws on decades of expertise in cartridge engineering and cantilever design to deliver the highest-performing moving magnet cartridge Rega have ever produced. Their design team has introduced a Boron rod cantilever with a Fine Line stylus profile based on the reference Aphelion 2 moving-coil cartridge for use in the Nd9. The Boron cantilever offers exceptional stiffness and low mass, enabling ultra-fast response and outstanding playback accuracy. The Nd9 is also available as a factory-fitted option on the Planar 8 turntable.
A master of detail
Each Nd9 is meticulously hand-made by Rega's highly skilled technicians. The Nd9 uses Rega's most advanced “fine line” nude diamond profile, bonded to a Boron rod cantilever for maximum musical detail retrieval. This profile has an exceptionally small radii Monocrystalline manmade diamond with the minor radius being just 3µm (microns) as viewed from the top and 30µm in the vertical when viewed from the front. This profile allows immediate adjustment to very small changes in the vinyl due to the small contact area of the diamond which results in exceptional levels of detail being retrieved. The design uses brand new generator geometry with perfect symmetry to achieve highly accurate channel balance.
The Nd9 also has an optimised pole gap for superior linearity and cross talk characteristics, this provides a far wider soundstage than the previous models. This new cartridge is created with miniaturised parallel coils which are wound in house utilising 38-micron wire with just 1275 turns. This produces a low inductance, low impedance generator giving vastly improved high frequency response. In keeping with our commitment to sustainability, the Nd range is supplied in 100% recyclable packaging.

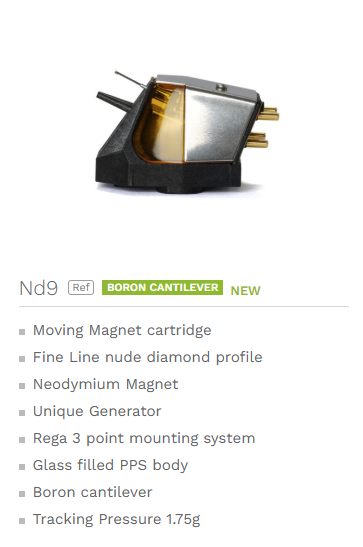

Key Features
- Fine Line nude diamond profile
- Boron cantilever
- Neodymium magnet
- Unique generator
- Rega 3 point mounting system
- Highly rigid PPS body
- Handmade stereo cartridge
- 100% recyclable packaging
- Available factory fitted on the Planar 8 turntable.
- Lifetime warranty against manufacture defects
Nd Magnet technology
Often used in Moving Coil designs (including our Rega's own) the Nd range are the first moving magnets to utilise a Neodymium (Nd) N55 magnet. This is the world’s most powerful commercially available magnet and is a crucial component that makes this unique design possible by delivering extra power than standard bar magnet designs.
Boron Cantilever & stylus profile
The Nd9 boron cantilever is fitted with a precision perfect fine line nude diamond stylus. This combination provides the ultimate in tracking accuracy and extracts greater levels of detail from the vinyl surface. The challenge Rega faced with the Nd9 was connecting the Nd magnet to a solid Boron rod. This was achieved by working with a famous watch maker to manufacture an ultra-fine connecting tube with different diameters at each end. Boron is exceptionally light which allows for faster reaction to the changes in record surface and is highly rigid for its mass. A more rigid cantilever bends less so it transmits motion more accurately with less distortion.
Factory Fitted option
The Nd9 cartridge will be offered as a factory fitted option on the multi award winning Planar 8 turntable model. The factory fitted package is offered at a discounted rate compared to when purchased separately, ask your Rega dealer for details.
Glass filled PPS body
The complete assembly is housed in our zero tolerance Injection moulded glass filled polyphenylene sulphide body (PPS) which is a lightweight and highly rigid material. A low mass body reduces stress on the tonearm bearings and aids free movement which is critical in accurate vinyl replay. This new body design was inspired by our hugely successful MC range.
Rega rebuild scheme
The unique pivot pad design of Rega cartridges improves performance by eliminating the mechanical joint between the stylus housing and the main body. This vastly improves tracking ability and stability of the stylus. If you should damage or wear out your Rega cartridge, simply return it to you Rega dealer and they will supply you with a rebuild cartridge fitted with a new cantilever, stylus and pivot pad. Each rebuild is fully tested as a new cartridge would be. The rebuild is sold at a reduced price once you trade in your worn or damaged cartridge that is equivalent to a replacement stylus offered by other manufacturers.
Technical Specifications
Nominal Output Voltage
5-6mV
Stylus
Fine Line nude diamond profile
Cantilever
Boron
Fixing
3 point fixing (for Rega tonearms only)
Coils
Miniaturised parallel coils
Window Colour
Amber
Tracking Pressure
1.75g
